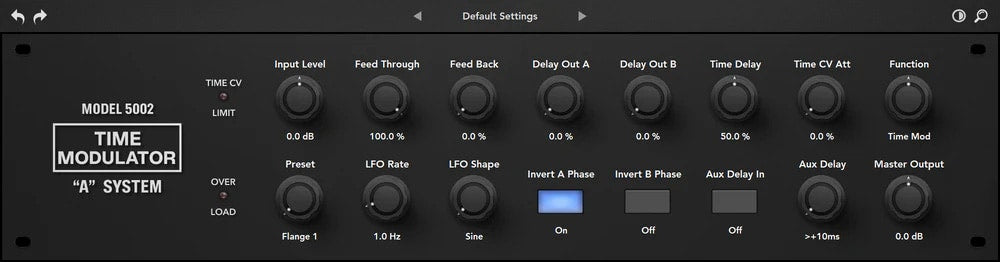

Rave Generation Time Modulator

Time Modulator is a recreation of a legendary 1970s analog delay processor, one of the most advanced time-based effects units of its era.

Originally developed in the mid-1970s, this iconic unit achieved an exceptional 95dB signal-to-noise ratio through a dual BBD (Bucket Brigade Delay) design paired with modified dbx 303 compander circuitry.

The plugin faithfully reproduces the full signal path of the original hardware, including the proprietary ADL-70-D (Dynamic) and ADL-60-S (Static) delay modules, custom dbx 303 compander boards, and a complex internal LFO system.

Its sound helped shape iconic tracks like Stevie Wonder's Songs in the Key of Life, David Bowie's Ashes to Ashes, and Queen's Another One Bites the Dust.

It was also central to the Darth Vader voice processing in Star Wars, making it a key tool in both music production and cinematic sound design throughout the 70s and 80s.

Time Modulator also adds modern features such as full automation support and smooth parameter transitions, while preserving the analog tone and intricate signal behavior that made the original a creative staple.

Authentic Dual BBD Architecture

• Reticon SAD1024 BBD simulation with proper 1024-stage characteristics
• ADL-70-D Dynamic Module: Continuously variable 1-25ms primary delay
• ADL-60-S Static Module: Auxiliary delay with stable timing for complex effects
• Voltage-controlled clock generation with anti-aliasing and reconstruction

Modified dbx 303 Compander System

• St. Croix's custom modifications optimized for outboard gear applications
• 95dB signal-to-noise ratio with sophisticated encode/decode processing
• Linked compressor/expander operation around delay modules
• Custom VCA filters and RMS detector pre-emphasis circuits

Complete LFO Waveform Set

• Six authentic waveforms: Sine, Square, Saw, Triangle, SSC, Random
• 0.1-10Hz frequency range with musical voltage control characteristics
• Function mode-specific behavior and waveform shaping
• Dual-phase output for authentic stereo delay modulation

6-Preset System

• Flange presets 1-3: Matched delay ratios inspired by classic flanging configurations
• Delay presets 1-3: Extended delay times for echo and doubling effects
• Carefully tuned delay ranges and time relationships
• Seamless preset switching with parameter interpolation

Three Function Modes

• Audio Delay: Clean delay mode with extended timing for echo effects
• Time Mod: Primary flanging/modulation mode with complex feedback
• Phase Shift: Phase-based effects with quadrature LFO relationships

Authentic LED Monitoring

• Time CV Limit LED: Indicates when CV modulation hits limiting rails
• Overload LED: Monitors input level after Input Level control
