DiscoDSP OPL

The OPL is a digital sound synthesis chip developed by Yamaha in the mid 1980s. Among other products, it was used in sound cards for PC, including the Ad Lib card and early Sound Blaster series.

This instrument provides an emulated OPL sound chip. It provides all features of the OPL2, and some features of the OPL3.

What's an OPL?

At a technical level: the emulator has channels comprised of 2 oscillators each. Each pair of oscillators is usually combined via phase modulation (basically frequency modulation). Each oscillator can produce one of eight waveforms (sine, half-sine, absolute sine, quarter sine, alternating sine, camel sine, square, logarithmic sawtooth), and has an ADSR envelope controlling its amplitude. The unusual waveforms give it a characteristic sound.

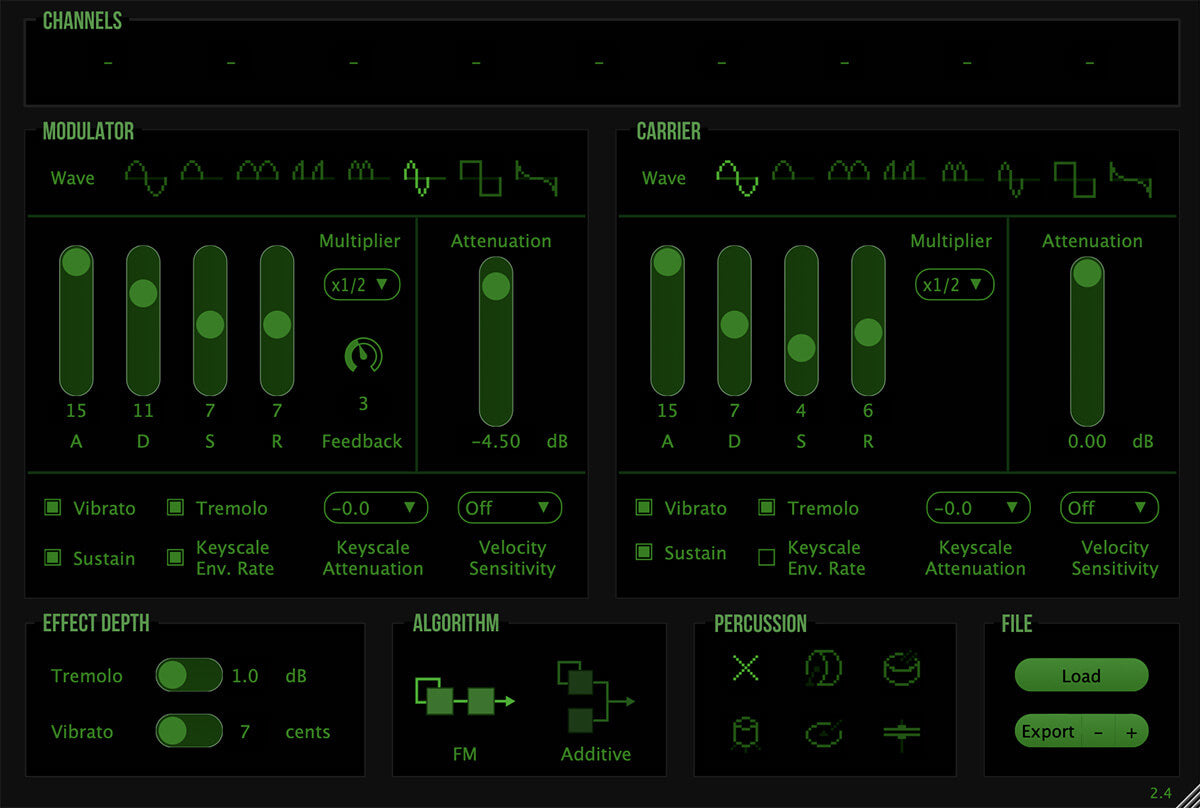

Each instance of the plugin emulates an entire OPL chip, but with this plugin, essentially you are just working with two operators: the carrier and modulator.

SBI Files

SBI files are an instrument file format developed by Creative Labs back in the day for the Sound Blaster. Essentially they work as presets for this plugin. Just drag and drop them into the plugin window!

Percussion

Percussion mode is now supported! This mode is not very well documented, even in the original Yamaha documentation.

• Bass drum: Uses both operators. Essentially just doubles output amplitude?
• Snare: Uses carrier settings. Abs-sine waveform recommended.
• Tom: Uses modulator settings. Sine waveform recommended.
• Cymbal: Uses carrier settings. Half-sine recommended.
• Hi-hat: Uses modulator settings. Half-sine recommended.
